HD Pro Duplicator - Advanced Setup - Partition Gap Copy

Updated on May 18, 2026

sidebar-icon

The Partition Gap Copy option allows the duplicator to copy any gap data that resides between partitions when running Brief Copy. This is only required in rare circumstances.  Tap the ENT button to change this option.

Disabled

The duplicator will simply make a Brief Copy.

Enabled

The duplicator will check for and copy any data that resides between partitions.  Note: This is the Default setting.

To alter the Partition Gap Copy setting:

  1. Power on the duplicator.

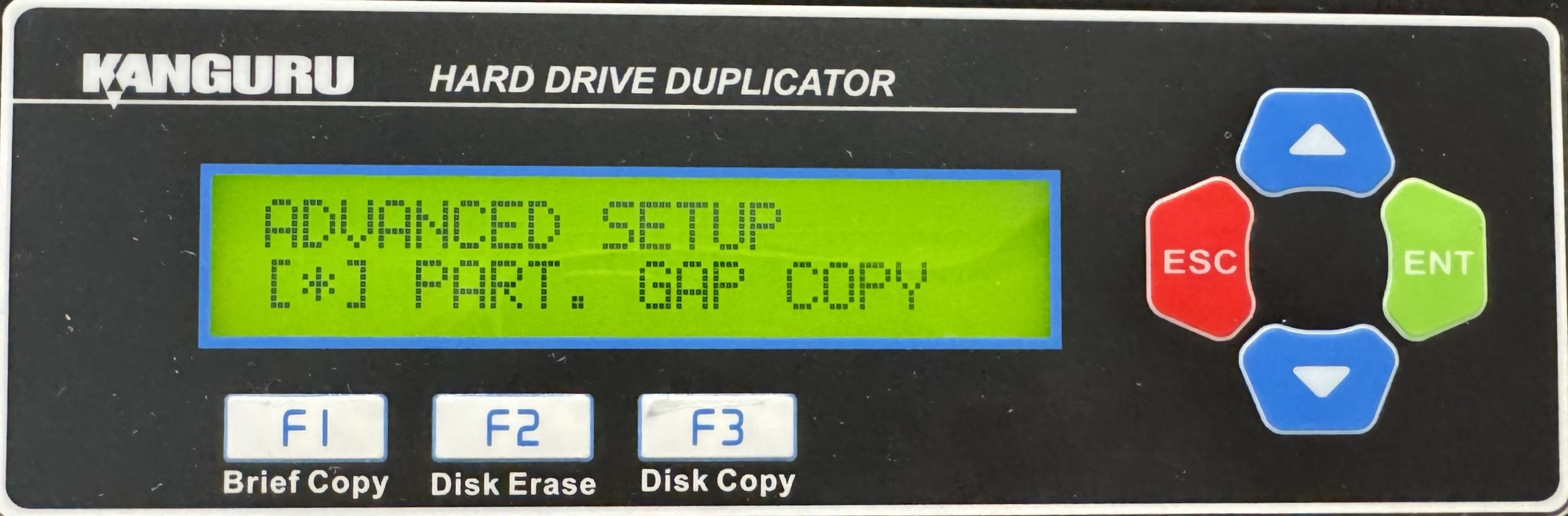

  2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
  3. Press the Up or Down buttons until you see Advanced Setup.
  4. When Advanced Setup is displaying for you, press the ENT button to enter this menu.
  5. Press the Up or Down buttons until you see Part. Gap Copy.
  6. When Part. Gap Copy is displaying for you, press the ENT button to alter the setting.
  7. Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
