HD Pro Duplicator - Advanced Setup - Set Ratio Erase Length

Ratio Erase duplicates only a defined percentage of the Source drive. The Set Ratio Erase Length option allows you to define the percentage of length to be erased. The starting point is defined by the Set Ratio Erase Start option.  Tap the ENT button to change this option.

By default, the Set Ratio Erase Length is 10.0% but can configured from 00.00% to 99.99%.

To alter the Set Ratio Erase Length setting:

1. Power on the duplicator.
2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
3. Press the Up or Down buttons until you see Advanced Setup.
4. When Advanced Setup is displaying for you, press the ENT button to enter this menu.

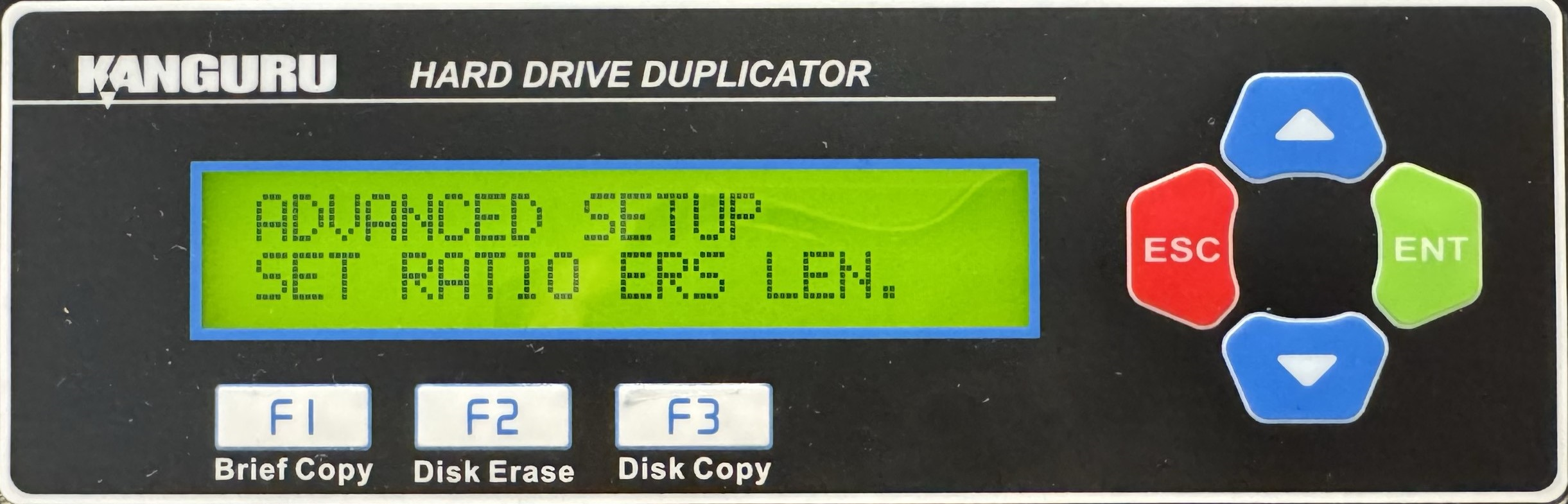

5. Press the Up or Down buttons until you see Set Ratio ERS LEN.
6. When Set Ratio ERS LEN is displaying for you, press the ENT button to alter the setting.
7. Use the Up or Down buttons to alter the setting.
8. Press the ENT button to save the setting.
9. Press the ESC button to return to the Menu Select mode.
