HD Pro Duplicator - Main Setup - Keep Capacity
The Keep Capacity option allows you to lock the amount of free space on the Target drives so the total disk capacity appears the same as the Source drive. Tap the ENT button to change this option.
|
Disabled |
Keep Capacity is disabled. The system will leave any unused capacity on Target drives as unallocated space. Example, if you use Brief Copy to duplicate a 250GB Source HDD to a 500GB Target HDD, when the duplication completes the 500GB Target disk will appear as 500GB drive with a 250GB active partition and 250GB of unallocated space. Note: This is the Default setting. |
|
Enabled |
Any unused space will be separated into an HPA partition. Example, if you use Brief Copy to duplicate a 250GB Source HDD to a 500GB Target HDD, when the duplication completes the 500GB Target disk will appear as a 250GB drive with zero unallocated space. |
To alter the Keep Capacity setting:
- Power on the duplicator.
- From the Main Copy Menu press the ESC button to enter the Menu Select mode.
- Press the Up or Down buttons until you see Main Setup.
- When Main Setup is displaying for you, press the ENT button to enter this menu.

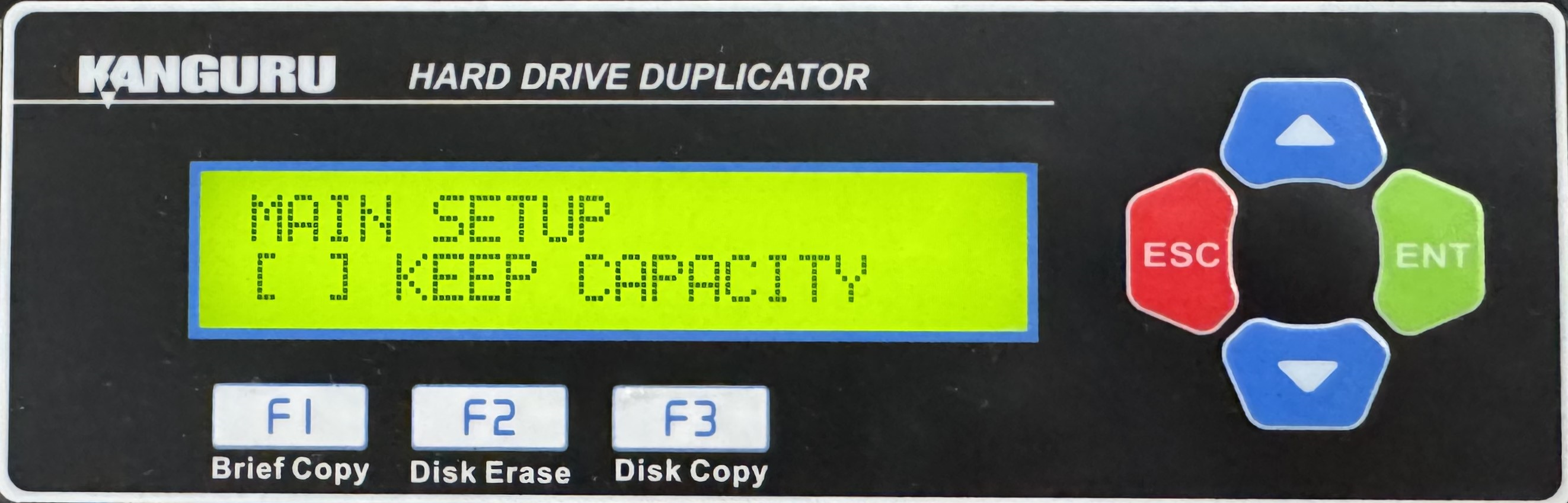

- Press the Up or Down buttons until you see Keep Capacity.
- When Keep Capacity is displaying for you, press the ENT button to alter the setting.
- Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
