HD Pro Duplicator - Main Setup - Optimized Log Table

Updated on May 18, 2026

sidebar-icon

The Optimize Log Table option can be enabled to help improve Brief Copy performance when duplicating Linux drives by building a more extensive data map prior to copying. Tap the ENT button to change this option.

Disabled

Optimize Log Table is disabled. Brief Copy will operate as normal. Note: This is the Default setting.

Enabled

Optimize Log Table is enabled. When using Brief Copy to duplicate a Linux disk, the duplicator will take additional time to build a comprehensive data map which will allow for better duplication speed during the copy process.

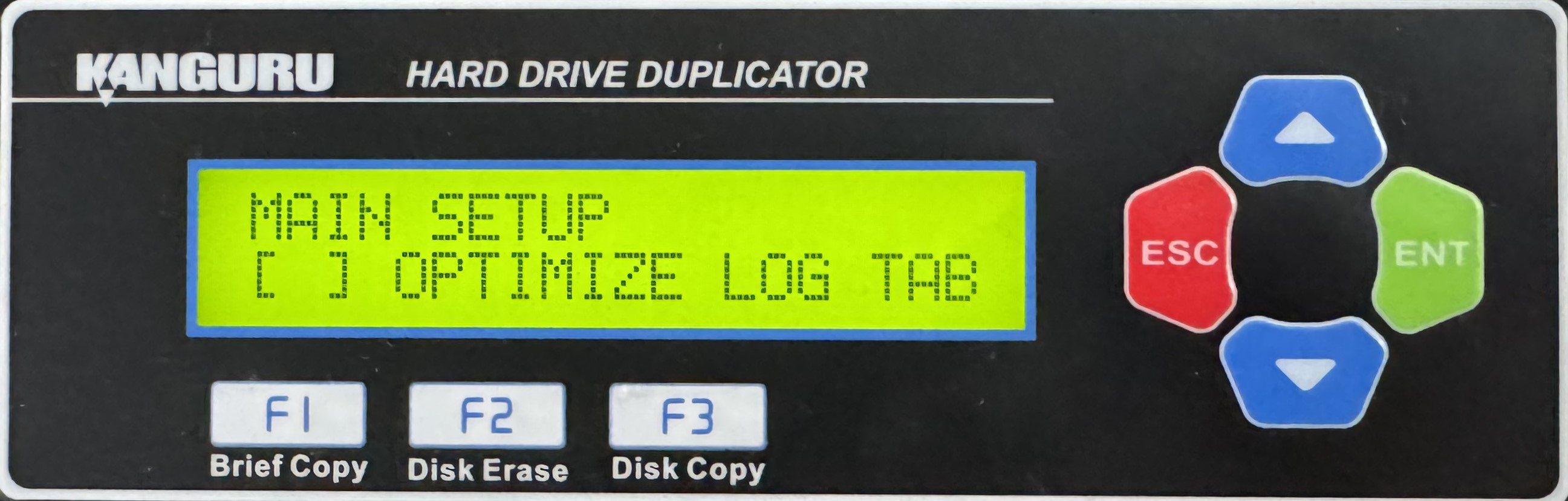

To alter the Optimize Log Table setting:

  1. Power on the duplicator.
  2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
  3. Press the Up or Down buttons until you see Main Setup.
  4. When Main Setup is displaying for you, press the ENT button to enter this menu.
  5. Press the Up or Down buttons until you see Optimize Log Table.
  6. When Optimize Log Table is displaying for you, press the ENT button to alter the setting.
  7. Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
