HD Pro Duplicator - Main Setup - SATA Speed

Updated on May 18, 2026

sidebar-icon

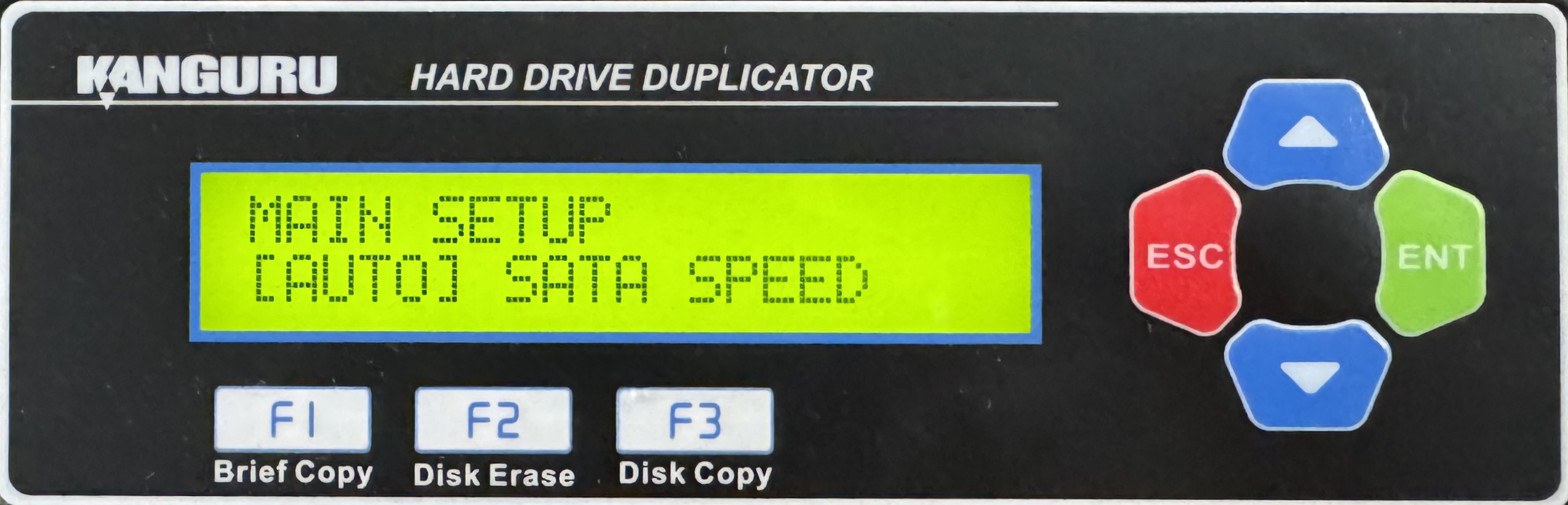

The SATA Speed option allows you to Select the data transfer mode. Tap the ENT button to change this option.

Auto

The system auto-selects the SATA speed mode based on the connected drives.  Note: This is the Default setting.

1.5G

Limit the data transfer mode to SATA I speeds (1.5Gbps).

3G

Limit the data transfer mode to SATA II speeds (3Gbps).

To alter the SATA Speed setting:

  1. Power on the duplicator.
  2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
  3. Press the Up or Down buttons until you see Main Setup.
  4. When Main Setup is displaying for you, press the ENT button to enter this menu.
  5. Press the Up or Down buttons until you see SATA Speed.
  6. When SATA Speed is displaying for you, press the ENT button to alter the setting.
  7. Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
