HD Pro Duplicator - Main Setup - Verify Checksum

Updated on May 18, 2026

sidebar-icon

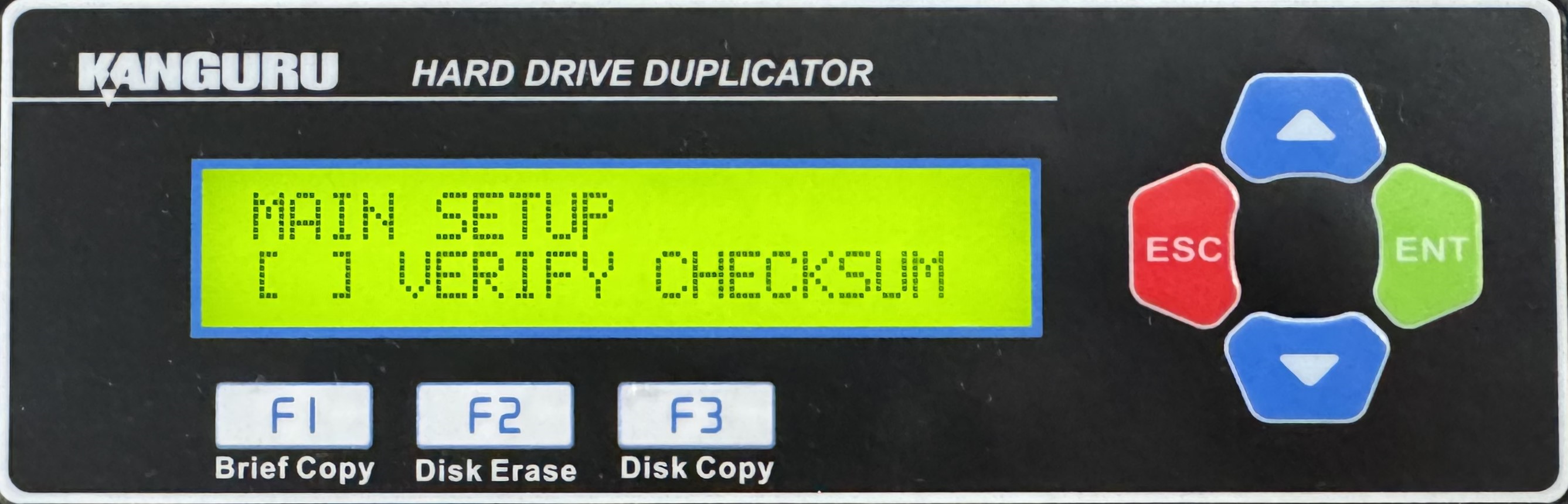

The Verify Checksum option allows you to configure whether the duplicator will compare the checksum value of the Source against the Target drives when duplication is finished. Tap the ENT button to change this option.

Disabled

Verifying the disk checksum is disabled   Note: This is the Default setting.

Enabled

Verifying the disk checksum is enabled.

To alter the Verify Source Check setting:

  1. Power on the duplicator.
  2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
  3. Press the Up or Down buttons until you see Main Setup.
  4. When Main Setup is displaying for you, press the ENT button to enter this menu.
  5. Press the Up or Down buttons until you see Verify Source CH.
  6. When Verify Source CH. is displaying for you, press the ENT button to alter the setting.
  7. Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
