HD Pro Duplicator - Storage Center Setup - Copy Storage Source

Updated on May 18, 2026

sidebar-icon

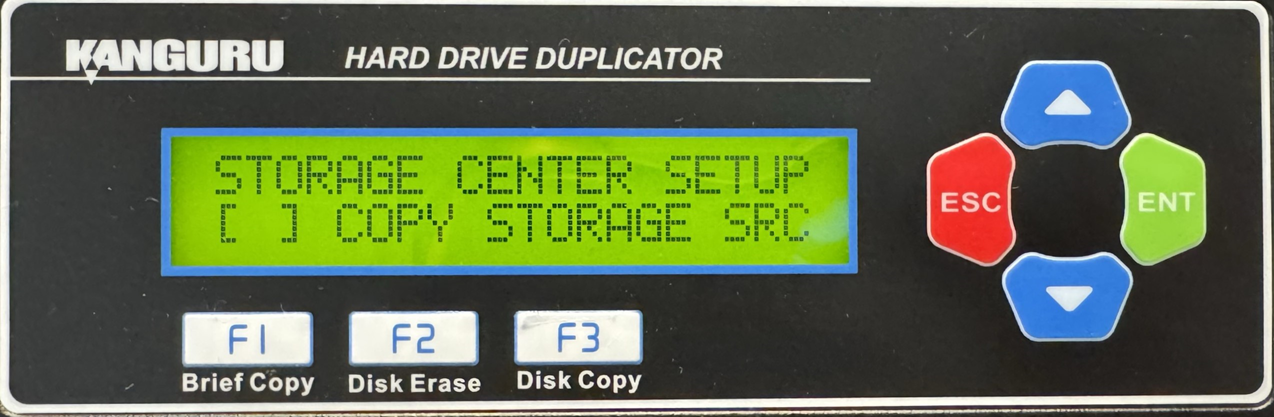

The Copy Storage Source option allows you to make a duplicate of your Storage Center drive. Tap the ENT button to change this option.

Disabled

The system will analyze the Source’s file system before duplication.  If the Source’s file system is recognized as a Storage Center then the duplicator will ask you to choose an image name to copy.  Note: This is the Default setting.

Enabled

The system will analyze the Source’s file system before duplication. If the Source’s file system is recognized as a Storage Center then the duplicator will make a copy of the entire Storage Center drive.

To alter the Copy Storage Source setting:

  1. Power on the duplicator.
  2. From the Main Copy Menu press the ESC button to enter the Menu Select mode.
  3. Press the Up or Down buttons until you see Storage Center Setup.
  4. When Storage Center Setup is displaying for you, press the ENT button to enter this menu.
  5. Press the Up or Down buttons until you see Storage Center Setup.
  6. When Storage Center Setup is displaying for you, press the ENT button to alter this setting.
  7. Once you have altered the setting, you can press the ESC button to return to the Menu Select mode.
